Digital Image Matrix Processor

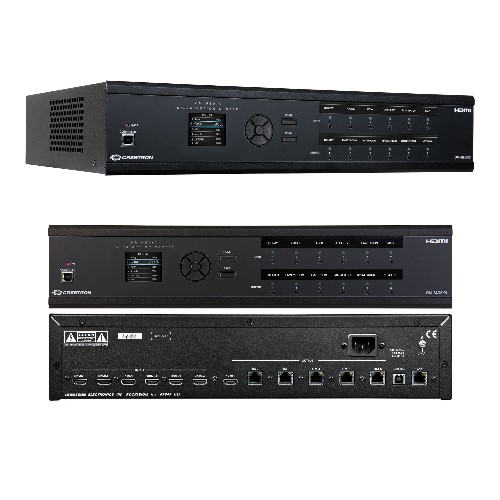

Crestron DM-MD6X6

6x6 DigitalMedia™ Distribution Center

Provides a very simple and cost-effective solution for distributing multiple high-definition AV sources to up to six rooms using CATx cable as part of a complete Crestron® system.

Features

  • Provides a low-cost, high-performance multiroom HD AV signal routing solution
  • Distributes uncompressed digital video and audio over CAT5e twisted pair wire
  • Affords a true one-wire solution using DigitalMedia 8G+® technology
  • HDBaseT® Certified — Enables direct connection to other HDBaseT certified equipment
  • Features independently-switchable DM 8G+™ or HDBaseT outputs for 5 remote displays
  • Allows up to 330 ft (100 m) wire distance to each display
  • Includes one HDMI® output for a local display or audio processor
  • Provides inputs for 6 HDMI, DVI, or DisplayPort Multimode sources
  • Handles video resolutions up to Full HD 1080p
  • Handles computer resolutions up to WUXGA
  • Handles 3D video and Deep Color
  • Handles Dolby® TrueHD, DTS-HD®, and uncompressed 7.1 linear PCM audio
  • HDCP compliant
  • QuickSwitch HD® technology manages HDCP keys for fast, reliable switching
  • Auto-Locking™ technology achieves rapid switching between disparate sources
  • Performs automatic AV signal format management via EDID
  • Allows independent scaling for every display through select DM® receivers
  • Enables USB HID mouse and keyboard signal extension
  • Expanded USB routing capabilities available using USB-EXT-DM USB over Ethernet
  • Extenders
  • Includes integrated Ethernet switch
  • Private Network Mode — requires just one IP address for the complete DM system
  • Provides Power over DM for PoDM compatible receivers
  • Provides easy setup and diagnostics tools via front panel or software
  • Includes built-in universal power supply
  • Allows native Crestron® system integration via Ethernet
  • Standard component width or 2-space rack-mountable
