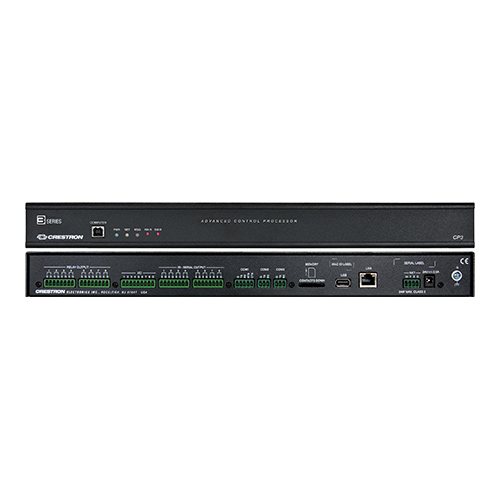

CP3

3-Series Control System

A compact, rack-mountable 3-Series® control processor with immense power and numerous integrated control ports.

Features

  • Enterprise-class control system
  • 3-Series® Control Engine- substantially faster and more powerful than other control systems
  • Exclusive modular programming architecture
  • Onboard 512MB RAM & 4GB Flash memory
  • Expandable storage up to 1TB
  • Rear panel memory card slot
  • High-speed USB 2.0 host port
  • Industry-standard Ethernet and Cresnet® wired communications
  • XPanel with Smart Graphics™ computer and web based control
  • iPhone®, iPad®, and Android™ control app support
  • Crestron Fusion® Cloud Enterprise Management Service support
  • SNMP remote management support
  • One RS-232/422/485 COM port with hardware and software handshaking
  • Two RS-232 COM ports with software handshaking only
  • Eight IR/serial, eight relay, and eight Versiport I/O ports
  • Programmable event scheduling with astronomical time clock
  • Native BACnet™/IP support [1]
  • Installer setup via Crestron Toolbox™ software or web browser
  • C#, symbol based, and drag-and-drop programming environments
  • Full Unicode (multi-language) support
  • Increased network throughput and security
  • Secure access through full user/group management or Active Directory integration
  • Hardware level security using 802.1X authentication
  • JITC certified model available for use in secure network environments
  • TLS, SSL, SSH, and SFTP network security protocols
  • FIPS 140-2 compliant encryption
  • IIS v.6.0 Web Server
  • IPv6 ready
  • Front panel USB computer console port
  • 1-space rack-mountable
